Strip and Stress on Data, Not on the Calendar.
Strip Forms Sooner
Know in-place strength the moment the slab hits spec, and strip on data instead of waiting on the lab.
Take the Tension Out of Post-Tension
Post-tension is everywhere in vertical builds. Stress tendons the day the concrete is ready and save a day or two on every cycle.
Every Floor, One Dashboard
Sensors report up to 1,000 ft (300 m) to one SmartHub™ Long Range, keeping every active pour visible as the project climbs.

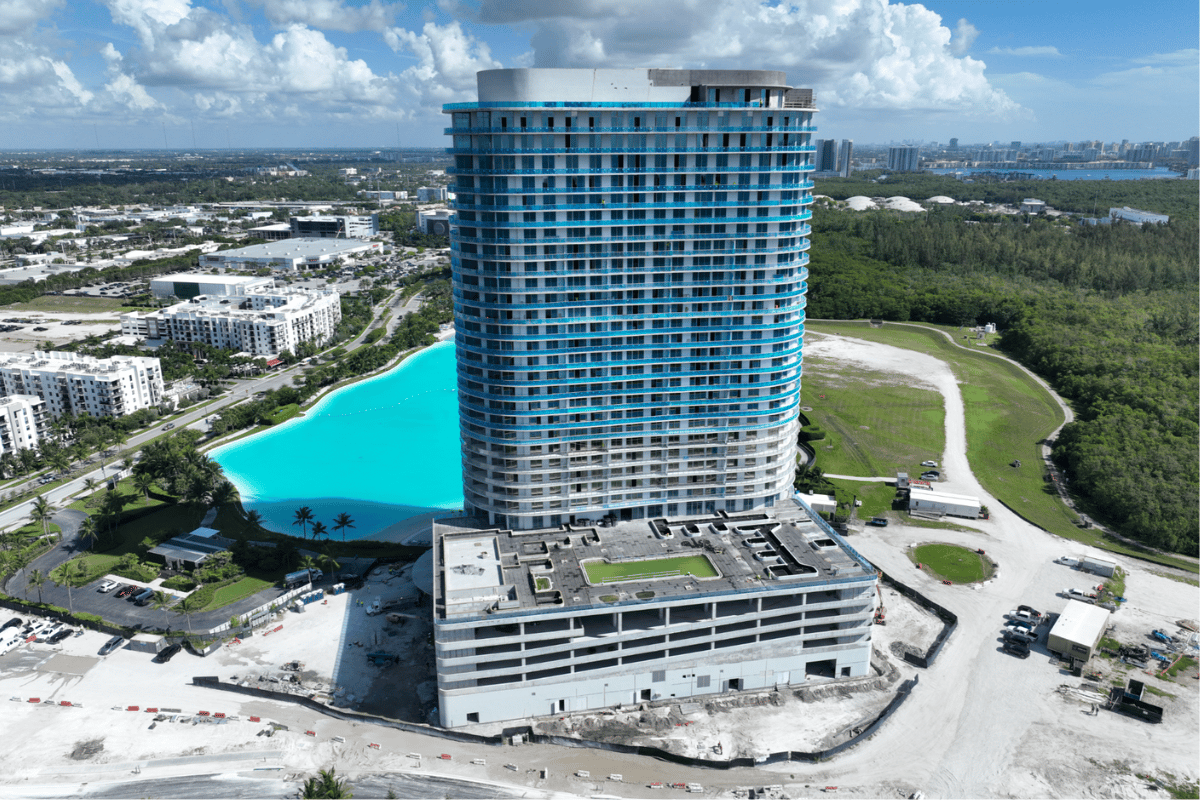

A tower under construction is dozens of active pours at once, each on its own schedule. Waiting days on cylinder breaks to strip forms or stress tendons multiplies across every floor you have left. SmartRock® Long Range sensors read temperature every 15 minutes and calculate in-place strength with the ASTM C1074 maturity method, so every floor gets its own live number instead of a shared guess. You decide on data the moment the concrete is ready, and the floor cycle keeps moving.
Technical Specifications
SmartRock Long Range |
 |
Reading Range |
-22 to +181 °F (-30 to 85 °C) |
| Measurement Accuracy | ±1.8 °F (1 °C) |
| Measurement Resolution | ± 0.18 °F (± 0.1°C) |
| Measurement Frequency | Once every 15 mins |
| Battery Life | Up to 4 months |
| Temperature Cable Length | 12 in (30 cm) / 10 ft (3 m) / By request: 50 ft (15.2 m) |
| Sensor Dimensions | L: 3 1/8” (80mm) W: 1 5/8” (42mm) H: 1 1/32” (26mm) |
| Data Communication and Analysis | Android and iOS mobile app SmartRock® Web Dashboard |
| Data Formats | Export as PDF or CSV |
| Maturity Standards | ASTM C1074 (The method is approved by ACI 318, CSA A23.1) |
SmartHub Long Range |
 |
Wireless Signal Range* |
Up to 1000 ft (300 m) |
| Cloud Synch Frequency | Once every 15 Min |
| Operating Temperature | -40 to 140 °F (-40 to 60 °C) |
| Battery Life | Requires external power |
| Weight | 3.6 lbs |
| Hub Dimensions (Does not include antenna) |
(10.4 x 6.5 x 3.9) (265 x 165 x100 mm) |
*Based on sensor installation and depth requirement.
The SmartHub Long Range is compatible exclusively with the SmartRock Long Range; non Long-Range devices, including alternative SmartRock or SmartHub G2 models, are not compatible. Giatec’s Long Range options are now available worldwide.
